混合器, 自传空转方式混合器 | 专业制造化学机械公司 | Unitech

溶解器 | 高粘度专用混合器 | 双轴混合器 | 自传空转方式混合器 | 包装用油压机 | 珠磨机 | U-mill(篮筐型) | 三辊研磨机 | 捏合机 | 合成树脂反应装置

HOME > 产品介绍 > 溶解器

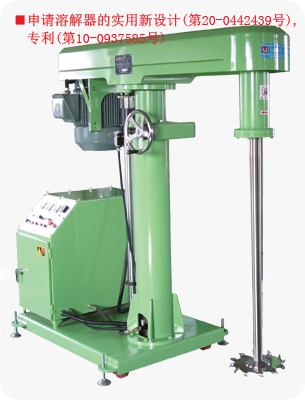

逆变方式(10HP) 模型 : U-DS10 (R.P.M 0-1300)	溶解器3-5HP) 模型 : U-DS5 (R.P.M 0-1700)



	● 以油压进行上下动作，既安全又简单操作. ● 以特殊设计，能够更方便、简单操作机械. ● 具有特殊设计的控制箱，更简单、方便的操作. ● 具有多种叶轮。具有强大的混合、溶解、分散作用. ● 多种油压启动及调节操作装置.



	● 移动方式固定方式架子方式逆变控制方式

* 根据顾客要求，订制上下操作范围.

header=[R.P.M Display] body=[Show the impeller speed<br>0 R.P.M ~ 1,300 R.P.M Operatively to]

header=[Impeller load display] body=[Show the stirring impeller friction with the product number (Displays the load of MOTOR)<br>※ Determine the appropriate load depending on the viscosity of the product]

header=[TIMER and the display settings window] body=[Operating timer switch to the ON position<br>Operating operates under the Time button<br>The end of the set time stops operation<br>※ It can stir a set number of hours]

header=[TIMER ON/OFF switch] body=[It can be set in the TIMER switch to the ON position during operation<br>※ When running TIMER OFF switch settings US]

header=[POWER lamp lights up] body=[When the red lights, etc. POWER switch to the ON position]

header=[MOTOR Lighting lamps] body=[Green lights up when you press the button MOTOR ON]

header=[Volume buttons impeller speed] body=[Turning the impeller rotation speed up to 0-20 adjusted and rotational speed are displayed on the R.P.M-METER<br>※ MOTOR ON switch, when pressed, adjustable]

header=[UP/DOWN Operation Lamp] body=[UP / DOWN lamp lights up during operation<br>STOP pressed and basic (Maximum) position when turned off]

header=[UP button] body=[Impeller position when the button is pressed, the rising<br>Use formulation through replacement button<br>※ Rising default (Maximum) position sensor or less during operation]

header=[Emergency stop button] body=[When an emergency stop button, when pressed<br>※ Turning in a clockwise direction when re-operation]

header=[POWER ON/OFF swich] body=[Red lamp lights when the switch is ON position<br>It enables operations such as the impeller and the up and down motion<br>※ POWER ON position during operation in any operation]

header=[MOTOR ON swich] body=[Green lamp lights when the switch is pressed<br>When the impeller operation can operate after pressing the POWER ON button<br>※ Volume auto run until R.P.M value located in position 0]

header=[MOTOR OFF swich] body=[Switch off the lamp / impeller stops when you press<br>When complete, agitation and stop push button<br>※ Stop immediately, regardless of the position of Volume]

header=[UP/DOWN STOP button] body=[UP / DOWN buttons of the operation is stopped immediately when pressed, can be replaced through stirring and mixing the desired height<br>※ Rise. STOP descent of the basic application ((Maximum) operation within the scope]

header=[DOWN button] body=[Button used for mixing impeller position is reworked after falling through when replacing button presses<br>※Basic fall (Maximum) Operating position sensor malfunction]

* 将鼠标悬停在控制面板上散发出来的操作这样的描述.



溶解器 30HP(配合罐固定导轨型)	溶解器 20HP(安装油压用导轨型)



溶解器 40HP	溶解器 15HP(配合罐固定导轨型)



溶解器 10HP	溶解器 15HP(配合罐上升型)



溶解器 30HP	溶解器 10HP(配合罐上升型)



溶解器 2HP(实验用)	溶解器 1HP(实验用)



溶解器 1HP(实验用)	溶解器 2HP(实验用)

溶解器 40HP(按装架子型)

溶解器 100HP(按装架子型)

溶解器 75HP(按装架子型-5000L)



智能混合器 20HP	智能混合器 1HP(实验用)



智能混合器 2HP(实验用)	智能混合器 5HP
