HOME > Product > Dissolver

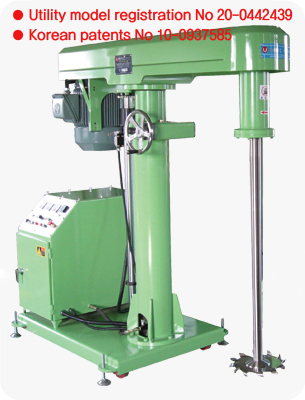

Inverter Control Type(10HP) MODEL : U-DS10 (R.P.M 0-1300)	DISSOLVER(3-5HP) MODEL : U-DS5 (R.P.M 0-1700)



	● Up and Down is operated safe and easily by oil pressure ● According to the special drawing, mixing and coloring is possible ● Control box in accordiance with the particular drwing is operated easily ● As main shaft of impeller turn around with light and left, you can opreate at various kind of tanks ● You can select to the products of high cost equipment for operating of oil pressure.



	● Removable, Fixed, Guided, Inverter Control

* Up and down of the operating range is manufactured according to your needs.

header=[R.P.M Display] body=[Show the impeller speed<br>0 R.P.M ~ 1,300 R.P.M Operatively to]

header=[Impeller load display] body=[Show the stirring impeller friction with the product number (Displays the load of MOTOR)<br>※ Determine the appropriate load depending on the viscosity of the product]

header=[TIMER and the display settings window] body=[Operating timer switch to the ON position<br>Operating operates under the Time button<br>The end of the set time stops operation<br>※ It can stir a set number of hours]

header=[TIMER ON/OFF switch] body=[It can be set in the TIMER switch to the ON position during operation<br>※ When running TIMER OFF switch settings US]

header=[POWER lamp lights up] body=[When the red lights, etc. POWER switch to the ON position]

header=[MOTOR Lighting lamps] body=[Green lights up when you press the button MOTOR ON]

header=[Volume buttons impeller speed] body=[Turning the impeller rotation speed up to 0-20 adjusted and rotational speed are displayed on the R.P.M-METER<br>※ MOTOR ON switch, when pressed, adjustable]

header=[UP/DOWN Operation Lamp] body=[UP / DOWN lamp lights up during operation<br>STOP pressed and basic (Maximum) position when turned off]

header=[UP button] body=[Impeller position when the button is pressed, the rising<br>Use formulation through replacement button<br>※ Rising default (Maximum) position sensor or less during operation]

header=[Emergency stop button] body=[When an emergency stop button, when pressed<br>※ Turning in a clockwise direction when re-operation]

header=[POWER ON/OFF swich] body=[Red lamp lights when the switch is ON position<br>It enables operations such as the impeller and the up and down motion<br>※ POWER ON position during operation in any operation]

header=[MOTOR ON swich] body=[Green lamp lights when the switch is pressed<br>When the impeller operation can operate after pressing the POWER ON button<br>※ Volume auto run until R.P.M value located in position 0]

header=[MOTOR OFF swich] body=[Switch off the lamp / impeller stops when you press<br>When complete, agitation and stop push button<br>※ Stop immediately, regardless of the position of Volume]

header=[UP/DOWN STOP button] body=[UP / DOWN buttons of the operation is stopped immediately when pressed, can be replaced through stirring and mixing the desired height<br>※ Rise. STOP descent of the basic application ((Maximum) operation within the scope]

header=[DOWN button] body=[Button used for mixing impeller position is reworked after falling through when replacing button presses<br>※Basic fall (Maximum) Operating position sensor malfunction]

* Hover your mouse on the control panel comes out operations such description.



DISSOLVER 30HP(Mixing Tank the Fixed Guide Type)	DISSOLVER 20HP(Mounted Hydraulic Guide Type)



DISSOLVER 40HP	DISSOLVER 15HP(Mixing Tank the Fixed Guide Type)



DISSOLVER 10HP	DISSOLVER 15HP(Mixing Tank Rising Type)



DISSOLVER 30HP	DISSOLVER 10HP(Mixing Tank Rising Type)



DISSOLVER 2HP(Experimental Type)	DISSOLVER 1HP(Experimental Type)



DISSOLVER 1HP(Experimental Type)	DISSOLVER 2HP(Experimental Type)

DISSOLVER 40HP(Guide Mounted Type)

DISSOLVER 100HP(Guide Mounted Type)

DISSOLVER 75HP(Guide Mounted Type-5000L)



HOMO MIXER 20HP	HOMO MIXER 1HP(Experimental Type)



HOMO MIXER 2HP(Experimental Type)	HOMO MIXER 5HP
