Paints, colorants, inks, coating agents, master batch pigments, electronic materials, cosmetics, ceramics, medicines, foods, and other chemical raw materials.

MECHANICAL SEALS

1. Bead was thinking of the 0.2-0.3m/m using the ultra-fine particle size distribution of the micro-Bead is possible.
2. Conventional distribution method of the bead size(1.0-3.0m/m) using a very large Bead there were difficulties in fine-dispersed.
3. Mill conventional raw materials into the gaps of the Disc is designed to release blocks of fine-Bead is very difficult.
4. Super Bead Mill off the Disc Bead specially designed screens with no blocking of the micro-Bead was successful.
5. Super Bead Mill the use of ultra-fine particle dispersion to resolve the difficulties in competing with other companies in myriad industries advantage in productivity will provide many more opportunities.

● Evaporation of solvent, such as working in confined type can be prevented.
● IS easy to operate machine eliminates the need for skilled workers 1 multiple operation is available
● RPM of the pump motor to adjust the operation of multiple layers is possible.
● By using multiple layers of diamond pump operation and easy cleaning.
● Produce a uniform product with a constant adjustment is possible.
● When to be concerned about the deterioration of the product with polyurethane interior coating and polyurethane, the impeller can be used.

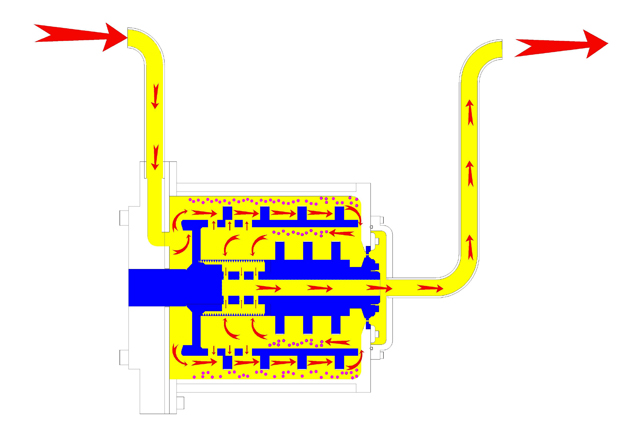

● Upward discharge of the product in a manner homogeneous dispersion of the product quality of the product less variation there is no overload in the tank when the effects as well as three high-density distribution is possible.

*The design of the product prices are subject to change without prior notice for quality improvement.

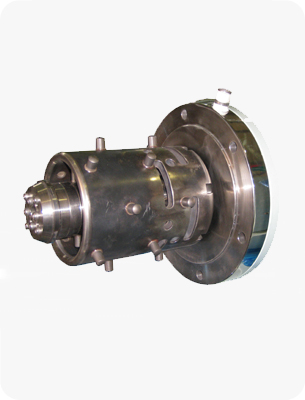

POWER BEAD-MILL IMPELLER

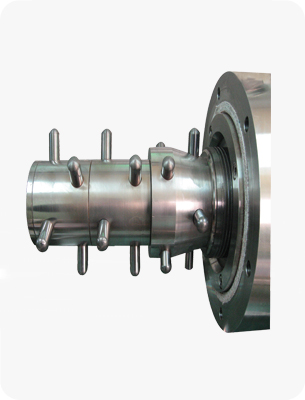

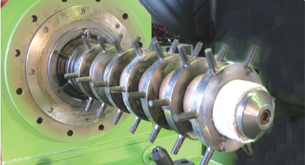

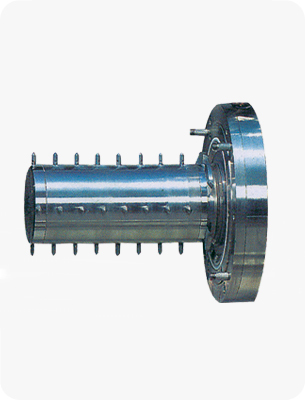

PIN TYPE IMPELLER

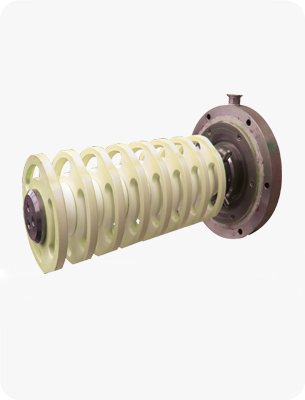

DISK TYPE IMPELLER

BEAD MILL U-D.30

BEAD MILL U-D.50

BEAD MILL 15L

BEAD MILL 10L

BEAD MILL 50L

BEAD MILL 30L

BEAD MILL 60L

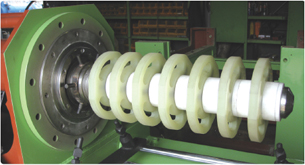

DISK TYPE IMPELLER

PIN TYPE IMPELLER

MODEL : U-D.20

MODEL : U-D.50

Paint, Coloring material, Ink, coating material, master batching paint, Electronic materials, Cosmetics, Ceramics, Pharmaceuticals, foods, Other chemical materials.

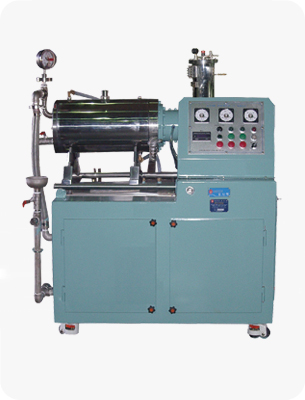

BEAD-MILL(UNI-MILL) 50L

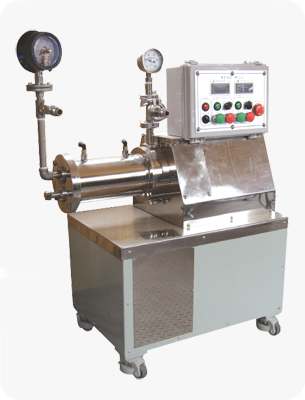

BEAD-MILL(UNI-MILL) 1L(EXPERIMENTAL TYPE)

1. MAIN FRAME
Steel structures of welded construction is sturdy, concise, and there is no vibration, quiet operation is assured.
2. AGITATOR SHAFT
For a quiet and silent operation consists of two pair of bearing mounting of two groups of which at the time of separation can be resolved easily.

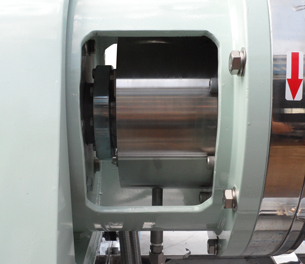

3. SHAFT SEAL
Shaft for sealing off between the raw DOUBLE MECHANICAL SEAL was equipped with a complete seal with forced cooling to maintain a long life by adopting the seal circulating oil and water, solvents, oils, and many can be selected.
4. GRINDING DISC
① Vessel impera facilitate the exchange and corrosion resistance, abrasion resistance and is made of excellent materials Polyurethane Coating, PTFE, specialty alloys, such as the choice of different materials can be.
② Metal contamination affected the product to be concerned about giving a degradation of the product to be used when the non-metallic products.
③ Impeller is in the form of a number of extant products and you can choose to apply a differential it data.
5. GRINDING MIXER TANK
Horizontal structure and excellent corrosion resistance and abrasion resistance, and in addition, Polyurethane Coating, PTFE, etc can be selescted depending on the nature of the product.
6. COOLING SYSTEM
Mixing tank cover portion main shaft outside and which is capable of cooling the cooling efficiency was as structures.
