● Ultra-Highly functioned dispersion

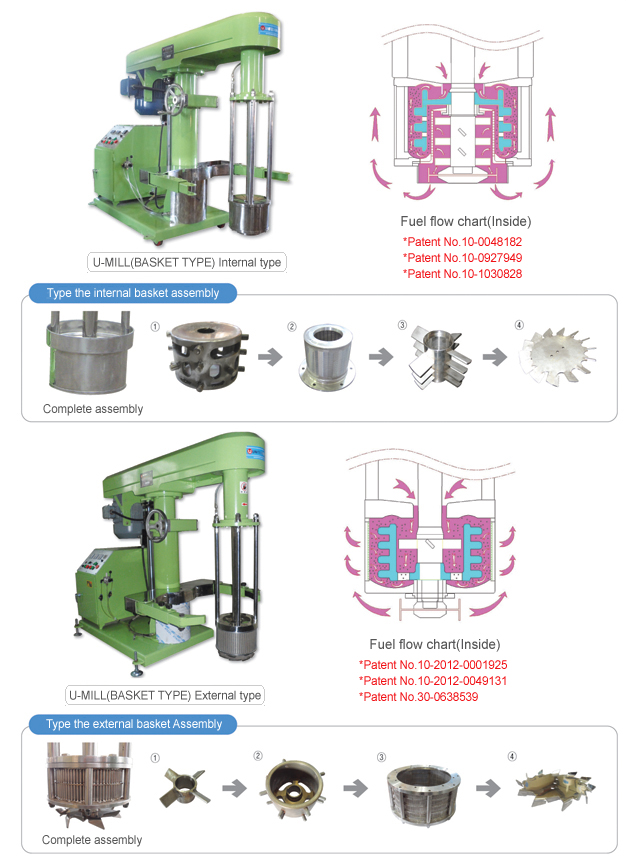

We divided material and bead's circulating section by using centrifugal force. It could maximize the contact area between beads and material, strengthen the dispersion power by pin disk, and realize strong dispersion in a excessively short time, compared to the existing batch mill.
● Maintaining low temperature
Unlike other batch mill, it has cooled and jacketed the whole dispersion vessel and cooled off dispersion vessel's interior to increase product's dispersion stability and expand cooling area 50% more than the existing batch mill. It solved out the problem of liquid evaporation caused by material's temperature rise, and product's instability.
● Reduced maintenance cost
Bead separating screen is located in the center of dispersion vessel which is at the counter direction of centrifugal force. This lengthens the lifetime of parts and reduces the replacing cost for consumable parts.
● Convenient use
Facility manipulation and driving method is simple so that a basic laborer can operate it and unmanned operation is also possible when driving conditions are programmed which allows flexible time management for the working labor.
● Increased productivity
It is able to manufacture small quantity and many kinds, maximized unmanned driving time, and shortened manufacture process, to increase the productivity and lower the manufacturing cost.
● Manufacturing various kind of products

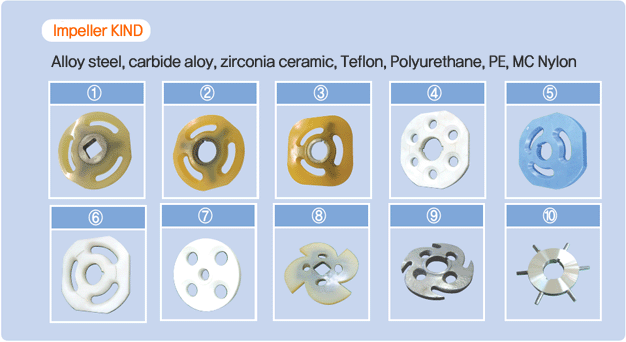

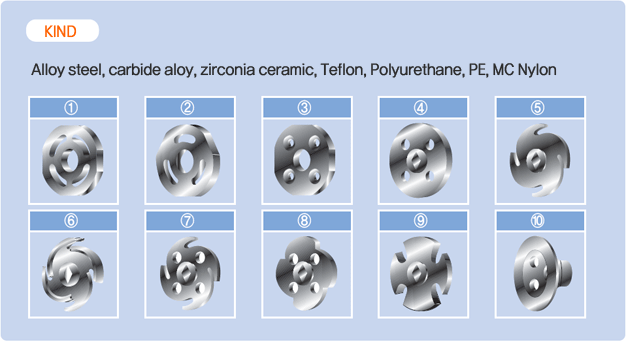

From low density to high density, stable dispersion can be achieved from low density to high density. Because we made dispersion parts to be assembled in different assembly, you can apply various kinds of materials(ceramic,tungsten carbide type). You can manufacture various kinds of products with one facility to maximize facility operating rate. |
|
 |
|
|
Paints, colorants, inks, coating agents, master batch pigments, electronic materials, cosmetics, ceramics, medicines, foods, and other chemical raw materials. |
|
 |
|
|
Silicon, Epoxy resins, Sealant, Printing ink, Foods, Pharmaceuticals, Graphite, Etc. |
|
|
 |
|
 |
|
|
|
|
|
* Select the shape of the selection of various materials is important. Depending on the nature of the products to be produced will depend on the adequate review and verification of the order. |
|
|
 |
|
 |
|
|
|
|
 |
 |
|
BASKET MILL 10HP(ELEVATED TANK) |
BASKET MILL 40HP(EXPLOSION-PROOF) |
|
|
|
|
|
 |
 |
|
U-MILL BASKET TYPE 300L(VACUUM TYPE) |
|
|
|
 |
 |
|
U-MILL BASKET TYPE 300L(OUT OF SCREEN TYPE) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
